LE Series Conveyor Belt Winding Machine

Professional conveyor belt winding equipment for belt replacement and storage management

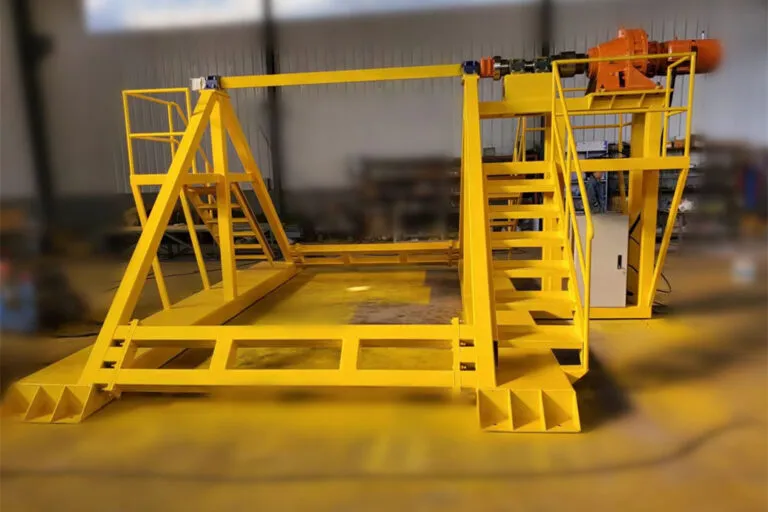

LE Series Conveyor Belt Winding Machine

Product Purpose

LE series Conveyor Belt Rolling machine is a kind of product used for belt conveyors to change conveyor belts. It can be unrolled or rolled into rolls according to user requirements to facilitate packaging and transportation.

Application Scenarios

The belt winder machine is suitable for all kinds of occasions where the belt conveyor has used and the storage place and the warehouse.

Characteristics of conveyor belt winding machine

The conveyor belt winding machine occupies a small space and can be installed indoors and outdoors, and can be used in underground mines.

The winding machines produced by our company are mainly divided into three types:

  • Fixed size standard model
  • Explosion-proof model
  • Frequency modulation type

Suitable for conveyor belts with a width of 500 mm-2000 mm, the length of the tape can be rolled up to 600m.

The design can be customized according to the parameters required by the customer.

The main structure

LE series conveyor belt winding machine is composed of a motor, cylindrical gearwheel reducer, main frame, sub-frame, and machine. The motor has normal and explosion-proof depending on the place of use.

The driving device consists of a 30 KW motor directly connected to the coiliated gearwheel reducer, and the drum is driven in rotate by the coupling.

Operation and use

  • Place the machine flat on the work place, adjust the direction of the tape, ensure the level of the two ends of the roll, and then fix the stand.
  • Add 70# industrial gear oil to the oil level line for the reducer and replace it every three months.
  • Before the belt is rolled, make sure that the tape is flat.
  • Big belt to see the correct direction of rotation can be used.
  • Push the transport head into the device as shown in the figure, manually take the lead around the core, and then turn it 3-5 turns to leave. It can be automatically rolled up by the weight of the transport belt.

The main technical parameters

Specification Model LE1630 LE2030 LE2045
Max belt roll diameter 3000mm 3000mm 4500mm
Power 9 kw 15kw 30 kw
Voltage 380 V 3 phase or as request 380 V 3 phase or as request 380 V 3 phase or as request
Speed ratio 187 187 187
Max belt width 500-1600mm 1000-2000mm 1000-2000
Working speed 12.6 meter/minute 12.6 meter/minute 12.6 meter/minute
Dimensions 3735×1670×1600 4330×1670×1700 5000×2200×2450
